ACT 2002 Subaru Impreza HD-M/Race Sprung 6 Pad Clutch Kit

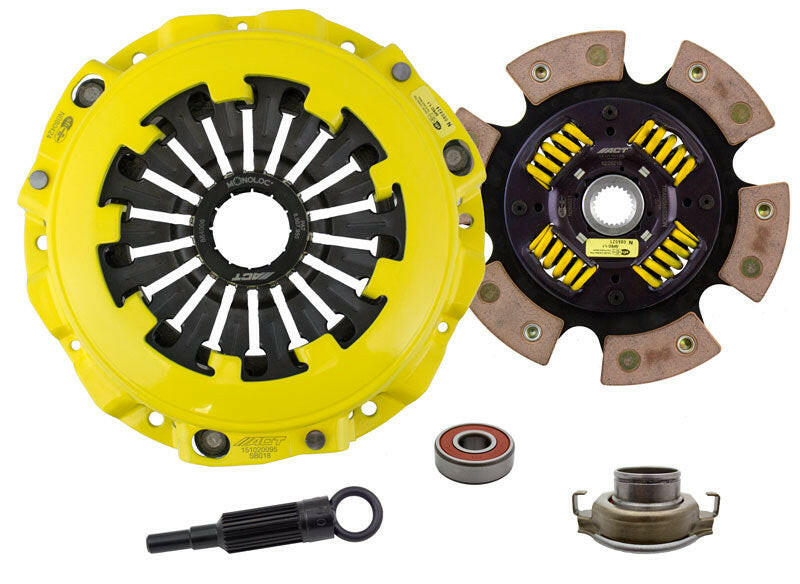

SB9-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened Chrome-moly steel construction will provide years of service.

This Part Fits:

Year	Make	Model	Submodel
2005	Saab	9-2X	Aero
2004-2005	Subaru	Baja	Turbo
2004-2005	Subaru	Forester	XT
2005	Subaru	Forester	XT Premium
2002-2005	Subaru	Impreza	WRX
2008-2009	Subaru	Legacy	GT spec.B
1991-1994	Subaru	Legacy	Sport
